Maximum Power Obtainable

PowerMax 1260

Contact Us Learn More
  • Power Factor Correction
  • Extremely Powerful
  • Small Footprint, Lightweight Design

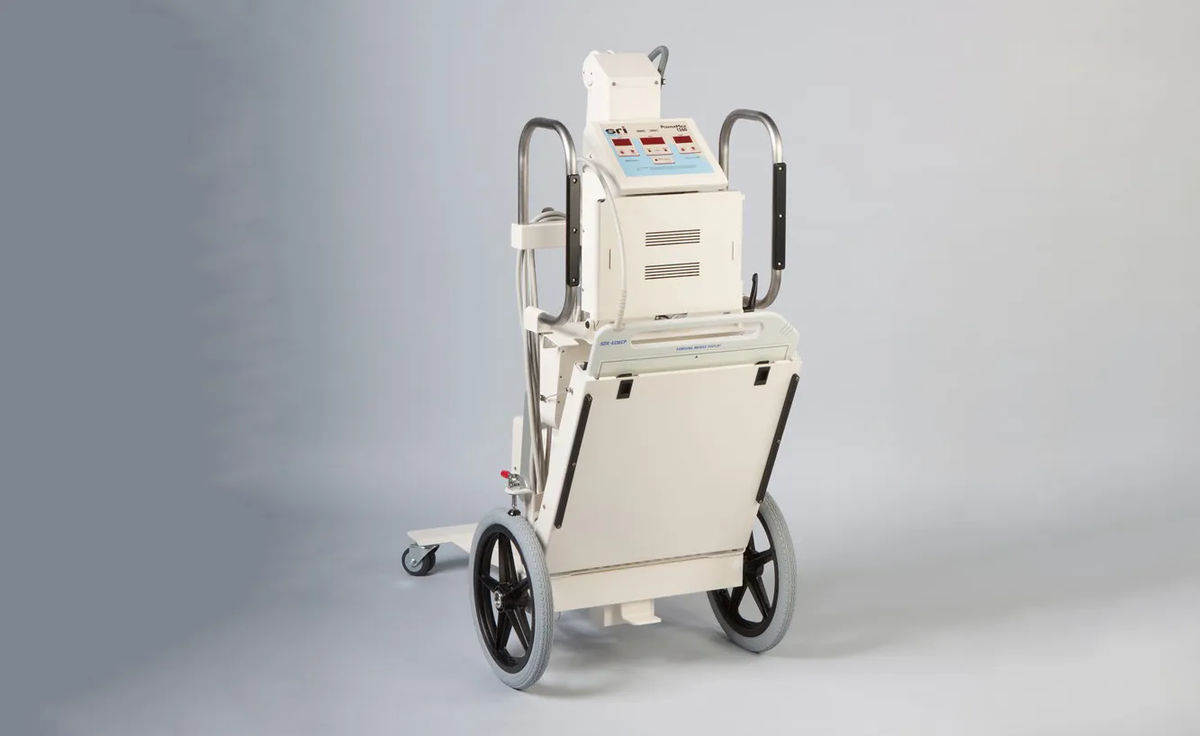

PowerMax 1260 Portable X-ray System

The PowerMax-1260 Portable X-ray System combines lightweight maneuverability with maximum power, making it suitable for various applications. In addition, with high reliability and low maintenance, the state-of-the-art system offers an easy upgrade path for clinical sites transitioning to digital imaging.

Designed with Agility in Mind for Portable X-ray Applications

Light Weight 110lbs

kVp Range 40 - 120

mAs Range 0.125 - 200

Universal Input Power 100 - 240v

Key Advantages

  • Our most powerful portable x-ray system
  • Initially designed for the military
  • Compact, high-power, general-purpose
  • Universal input - power factor correction
Learn About Other Key Advantages

Specifications

Radiographic Applications
  • Used in hospitals, medical centers, clinics, sport complexes, nursing homes, home health care, correctional facilities & military applications.
Generator Type
  • High frequency Resonant Inverter Microprocessor controlled.
kVp Range
  • Extremity Range – Adjustable in 1kVp steps.
mA Range
  • 12.5 – 60 Selectable. Dynamic mA, dependent on KV or Time
mAs Range
  • Optimum Range – Provides quality soft tissue & bone resolution.
Exposure Time
  • 96 steps – Provides accurate technique settings.
X-ray Tube
  • Stationary anode, 15° Target, 1.2 fs 30,000 Heat Unit Storage
  • 1.2 fs 30,000 Heat Unit Storage. Provides superior image quality & heat storage.
Collimator
  • 200° Rotation – High output LED lamp, Laser Indicators.
Exposure Switch
  • 2 Position, Prep / X-ray, 15' Cable.
Mechanical Stand
  • Welded Aluminum construction.

Reach Out

Want To Learn More About The PowerMax 1260?

OR
+1 (631) 244-8200
